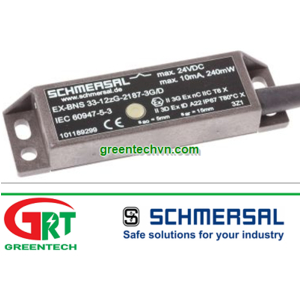

BNS 33-12ZG-2187 | Schmersal BNS 33-12ZG-2187 | Khóa an toàn BNS 33-12ZG-2187 | Schmersal Vietnam
BNS 33-12ZG-2187
Schmersal Vietnam | Greentech Vietnam
.
| Ordering details | |
| Product type description | BNS 33-12ZG-2187 |
| Article number | 101128196 |
| EAN Code | 4030661026947 |
| eCl@ss | 27-27-24-02 |
| Approval | |
| Approval |
BG
USA/CAN
EAC |
| Classification | |
| Standards | EN ISO 13849-1 |
| B10d Normally-closed contact/Normally open contact (NC/NO) | 25.000.000 |
| - notice | at max. 20% contact load |
| Mission time | 20 Years |
| notice |
|
| Global Properties | |
| Permanent light | BNS 33 |
| Standards | IEC 60947-5-3, BG-GS-ET-14 |
| Compliance with the Directives (Y/N)
| Yes |
| Materials | |
| - Material of the housings | Plastic, glass-fibre reinforced thermoplastic |
| - Material of the cable mantle | PVC |
| Weight | 75 |
| Monitoring function of downstream devices (Y/N) | No |
| Prerequisite evaluation unit | Yes |
| Recommended safety-monitoring module | |
| Recommended actuator | BPS 33, BPS 33-2326 |
| Mechanical data | |
| Design of electrical connection | Cable |
| Cable length | 1 |
| Conductors | 0,25 |
| AWG-Number | 23 |
| mechanical installation conditions | not flush |
| Active area | Side |
| Ensured switch distance ON Sao | 5 mm / 8 mm |
| - BPS 33 = 5 mm Actuating magnet | |
| - BPS 33-2326 = 8 mm Actuating magnet | |
| Ensured switch distance OFF Sar | 15 mm / 18 mm |
| - BPS 33 = 15 mm Actuating magnet | |
| - BPS 33-2326 = 18 mm Actuating magnet | |
| Repeat accuracy R R | ≤ 0,1 x Sao |
| Type of actuation | Magnet |
| Direction of motion | head-on with regard to the active surface |
| restistance to shock | 30 g / 11 ms |
| Resistance to vibration | 10 … 55 HZ, Amplitude 1 mm |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −25 |
| - Max. environmental temperature | +70 |
| Storage and transport temperature | |
| - Min. Storage and transport temperature | −25 |
| - Max. Storage and transport temperature | +70 |
| Protection class | IP67 |
| Electrical data | |
| Integrated Safety monitoring module available (Y/N) | No |
| Cross circuit/short circuit recognition possible (Y/N) | Yes |
| Voltage type | VDC |
| Switch frequency | max. 5 HZ |
| Switching voltage | max. 24 VDC |
| Switching current | max. 10 mA |
| Switching capacity | max. 240 mW |
| Outputs | |
| Design of control output | Other, Reed contakts |
| Number of shutters | 1 |
| Number of openers | 2 |
| Electrical data - Safety outputs | |
| Number of secure semi-conductor outputs | 0 |
| Number of secure outputs with contact | 0 |
| Electrical data - Diagnostic output | |
| Number of semi-conductor outputs with signaling function | 0 |
| Number of outputs with signaling function that already have a contact | 0 |
| LED switching conditions display | |
| LED switching conditions display (Y/N) | Yes |
| - The LED is illuminated when the guard is closed. | |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 88 |
| - Height of sensor | 25 |
| - Length of sensor | 13 |
| notice | |
| Contact symbols shown for the closed condition of the guard device. | |
| The contact configuration for versions with or without LED is identical. | |
| Included in delivery | |
| Actuators must be ordered separately. | |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 31.08.2018 - 14:31:11h Kasbase 3.3.0.F.64I | |
