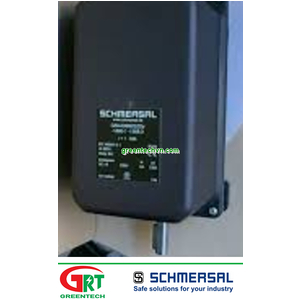

G150-150M44/44Y-2281-4-1368-3 | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
G150-150M44/44Y-2281
Schmersal Vietnam | Greentech Vietnam
12 tháng
.
| Ordering details | |
| Product type description | TD 422-01Y - |
| Article number | 101170460 |
| EAN code | 4030661297705 |
| eCl@ss | 27-27-06-01 |
| Approval | |
| Approval |
CCC
|
| Global Properties | |
| Product name | 422 Rollenschwenkhebel D |
| Standards | EN 60947-5-1 |
| Compliance with the Directives (Y/N)
| Yes |
| Suitable for safety functions (Y/N) | No |
| Standard housing (Y/N) | No |
| Materials | |
| - Material of the housings | cast iron, galvanized |
| - Roller material | Plastic |
| - Material of the contacts | Silver |
| Housing coating | painted |
| Weight | 1305 g |
| Slide form | Castor |
| Mechanical data | |
| Design of electrical connection | Screw connection |
| Cable section | |
| - Min. Cable section | 1.5 mm² |
| - Max. Cable section | 2.5 mm² |
| AWG-Number | 13 |
| Active principle | mechanical |
| Mechanical life | 10.000.000 operations |
| notice | All indications about the cable section are including the conductor ferrules. |
| Design of actuating element | Roller lever |
| Bounce duration | |
| Switchover time | |
| Contact opening | 2 x 6 mm |
| Actuating speed with vertical actuating angle to switch axis | |
| - Min. Actuating speed | 1 mm/min |
| - Max. Actuating speed | 3 m/s |
| - Actuating angle from left of switch axis | 30° |
| - Actuating angle from right of switch axis | 30° |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −30 °C |
| - Max. environmental temperature | +90 °C |
| Protection class | IP65 to IEC/EN 60529 |
| Electrical data | |
| Design of control element | Opener (NC) |
| - with double break | |
| Switching principle | Creep circuit element |
| - positive break NC contact
| |
| Number of shutters | 0 piece |
| Number of openers | 1 piece |
| Rated insulation voltage Ui | 400 V |
| Thermal test current Ithe | 16 A |
| Utilisation category | AC-15: 400 V / 4 A |
| Max. fuse rating | 16 A gG D-fuse |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 106 mm |
| - Height of sensor | 209 mm |
| - Length of sensor | 63 mm |
| Roller wide | 9 mm |
| Roller diameter | 36 mm |
| Switch travel diagram | |
Notes Switch travel diagram
Contact closed
Contact open
Setting range
Break point
Positive opening sequence/- angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travel | |
| Ordering suffix | |
| The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: TD 422-01Y- 1276-2 | |
| ...- 1276-2 | gold-plated contacts |
| ...-T | Temperature-resistant and tropical version with ceramic insulation for -40°C … +200°CRated insulation voltage Ui: 500 V (Snap action) |
| ...-1801 | Splined shaft and lever available with 10° toothing |
| ...-RMS | Available with metal roller |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 13.08.2017 - 17:10:58h Kasbase 3.2.7.F.64I | |
