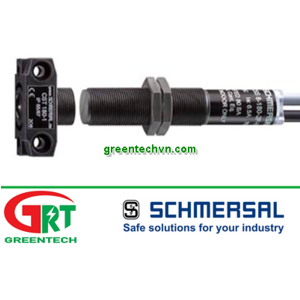

CSS8-180-2P-D-M-L | Schmersal | Công tắc từ | Schmersal Việt Nam
CSS8-180-2P-D-M-L |
Schmersal Vietnam | Greentech Vietnam
12 tháng
.
| Ordering details | |
| Product type description | CSS 8-180-2P+D-M-L |
| Article number | 101169558 |
| EAN code | 4030661295992 |
| eCl@ss | 27-27-24-01 |
| Approval | |
| Approval |
BG
USA/CAN
|
| Classification | |
| Standards | EN ISO 13849-1, IEC 61508, IEC 60947-5-3 |
| PL | up e |
| Control category | bis 4 |
| PFH | 2.5 x 10- 9 / h |
| SIL | bis 3 |
| Mission time | 20 Years |
| Classification | PDF-M |
| Global Properties | |
| Product name | CSS 180 |
| Standards | IEC 61508, IEC 60947-5-3 |
| Compliance with the Directives (Y/N)
| Yes |
| Suitable for safety functions (Y/N) | Yes |
| Protection rating | II |
| Function | Individual sensor or end sensor in a series, Sensor for series wiring |
| Series-wiring | up to 16 components |
| Length of the sensor chain | max. 200 m |
| Active principle | inductive |
| Materials | |
| - Material of the housings | Plastic, glass-fibre reinforced thermoplastic |
| - Material of the nuts | Plastic, glass-fibre reinforced thermoplastic |
| - Material of the active surface | Plastic, glass-fibre reinforced thermoplastic |
| Housing construction form | cylinder, thread |
| Cable colour | Grey ( OUT) |
| Weight | 149 g |
| Reaction time | ≤ 30 ms |
| Duration of risk | ≤ 30 ms |
| Cascadable (Y/N) | No |
| Recommended actuator | CST 180-1, CST 180-2 |
| Mechanical data | |
| Design of electrical connection | Cable |
| - Connector IN/OUT | 7-pole |
| Cable length | 2 m |
| Conductors | 0,25 mm² |
| AWG-Number | 23 |
| mechanical installation conditions | not flush |
| Switch distance Sn | 8 mm |
| Ensured switch distance ON Sao | 7 mm |
| Ensured switch distance OFF Sar | 10 mm |
| hysteresis | ≤ 0,7 mm |
| Repeat accuracy R R | ≤ 0,2 mm |
| restistance to shock | 30 g / 11 ms |
| Resistance to vibration | 10 … 55 Hz, Amplitude 1 mm |
| Tightening torque for nuts | A/F 24 max. 300 Ncm |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −25 °C |
| - Max. environmental temperature | +60 °C |
| Storage and transport temperature | |
| - Min. Storage and transport temperature | −25 °C |
| - Max. Storage and transport temperature | +85 °C |
| Protection class | IP65, IP67 to IEC/EN 60529 |
| Air clearances and creepage distances To IEC/EN 60664-1 | |
| - Rated impulse withstand voltage Uimp | 0,8 kV |
| - Overvoltage category | III |
| - Degree of pollution | 3 |
| Electrical data | |
| Cross circuit/short circuit recognition possible (Y/N) | Yes |
| Voltage type | DC |
| Supply voltage UB | |
| - Min. supply voltage | 20.4 VDC |
| - Max. supply voltage | 26.4 VDC |
| Switch frequency | 3 Hz |
| Rated insulation voltage Ui | 32 VDC |
| Residual current Ir | ≤ 0,5 mA |
| Operating current Ie | 1 A |
| Utilisation category | DC-12: 24 V / 0,5 ADC-13: 24 V / 0,5 A |
| No-load current I0 | 0,05 A |
| Electrical data - Safety outputs | |
| Safety outputs | Y1 and Y2 |
| Fuse rating | short-circuit proof, p-type |
| Design of control output | PNP |
| Number of secure semi-conductor outputs | 2 piece |
| Max. output current at secured output | 0,5 A |
| Rated operating voltage | 24 VDC |
| Operating current Ie | 0,5 A |
| Utilisation category | DC-12: 24 V / 0,5 ADC-13: 24 V / 0,5 A |
| Voltage drop Ud | max. 0,5 V |
| Electrical data - Diagnostic output | |
| Fuse rating | short-circuit proof, p-type |
| Design of control output | PNP |
| Number of semi-conductor outputs with signaling function | 1 piece |
| Rated operating voltage | 24 VDC |
| Operating current Ie | 0,05 A |
| Utilisation category | DC-12, DC-13 |
| Wiring capacitance for serial diagnostics | max. 50 nF |
| LED switching conditions display | |
| LED switching conditions display (Y/N) | Yes |
| Multi-coloured LED | green, red, yellow |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Length of sensor | 92 mm |
| - Diameter of sensor | M18 |
| Pin assignment | |
| 1 - A1 Ue | Brown |
| 2 - X2 Safety input 2 | White |
| 3 - A2 GND | Blue |
| 4 - Y1 Safety output 1 | Black |
| 5 - Signalling output | Grey |
| 6 - X1 Safety input 1 | violet |
| 7 - Y2 Safety output 2 | red |
| notice | |
| Requirements for the safety monitoring module | 2-channel safety input, suitable for p-type sensors with NO function. The safety monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 2 ms. The safety monitoring module does not need to have a cross-wire short monitoring function. |
| Included in delivery | |
| Actuators must be ordered separately. | |
| Mounting accessories | 2 x Nuts M 18 x 1 |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 17.04.2017 - 08:30:17h Kasbase 3.2.6.F.64I | |
