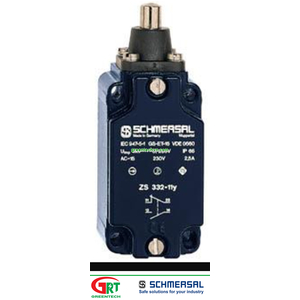

ZS 332-11Y | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
ZS 332-11Y
Schmersal Vietnam | Greentech Vietnam
12 tháng
.
| Ordering details | |
| Product type description | ZS 332-11Y - |
| Article number | 101149622 |
| EAN code | 4030661152516 |
| eCl@ss | 27-27-26-01 |
| Approval | |
| Approval |
CCC
|
| Classification | |
| Standards | EN ISO 13849-1 |
| B10d Opener (NC) | 20.000.000 |
| Mission time | 20 Years |
| notice |
|
| Global Properties | |
| Product name | 332 Druckbolzen S |
| Standards | EN 60947-5-1 BG-GS-ET-15 |
| Compliance with the Directives (Y/N)
| Yes |
| Suitable for safety functions (Y/N) | Yes |
| Actuator type | B to EN 50041 |
| Materials | |
| - Material of the housings | Metal film |
| - Material of the contacts | gold-plated silver |
| Housing coating | painted |
| Housing construction form | Norm construction design |
| Weight | 190 g |
| Mechanical data | |
| Design of electrical connection | Screw connection |
| Cable section | |
| - Min. Cable section | 1.5 mm² |
| - Max. Cable section | 2.5 mm² |
| Mechanical life | 30.000.000 operations |
| Switching frequency | max. 3000 /h |
| notice | All indications about the cable section are including the conductor ferrules. |
| Design of actuating element | Plunger |
| Actuating force | min. 31 N |
| Bounce duration | < 2.5 ms |
| Switchover time | > 1.5 ms |
| Contakt break for complete stroke | > 2 x 1.25 mm |
| Repeat accuracy of switching points | ± 0,02 mm |
| Actuating speed for vertical actuation | |
| - Min. Actuating speed | 10 mm/min |
| - Max. Actuating speed | |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −30 °C |
| - Max. environmental temperature | +80 °C |
| Protection class | IP65 |
| Electrical data | |
| Design of control element | Normally open contact (NO), Opener (NC) |
| Switching principle | Snap switch element |
| - positive break NC contact
| |
| Number of auxiliary contacts | 1 piece |
| Number of safety contacts | 1 piece |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 250 V |
| Thermal test current Ithe | 6 A |
| Utilisation category | AC-15: 230 V / 2,5 A |
| Required rated short-circuit current | 1000 A |
| Max. fuse rating | 6 A gG D-fuse |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 40 mm |
| - Height of sensor | 103.5 mm |
| - Length of sensor | 40 mm |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| Switch travel diagram | |
Notes Switch travel diagram
Contact closed
Contact open
Setting range
Break point
Positive opening sequence/- angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travel | |
| Ordering suffix | |
| The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: ZS 332-11Y-ST | |
| ...-ST
| M12 connector with A-codingRated impulse withstand voltage Uimp: 0,8 kVRated insulation voltage Ui: 50 VOperating current Ie: AC-15: 50 V / 4 ACaution! The versions with connector may only be used in PELV circuits to EN 60204-1. |
| ...-2310
| M12 connector with B-codingRated impulse withstand voltage Uimp: 0,8 kVRated insulation voltage Ui: 50 VOperating current Ie: AC-15: 50 V / 4 ACaution! The versions with connector may only be used in PELV circuits to EN 60204-1. |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 13.08.2017 - 10:00:50h Kasbase 3.2.7.F.64I | |
