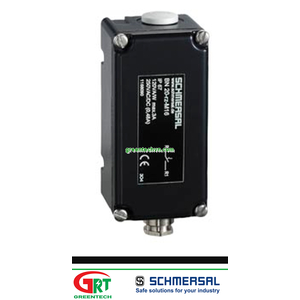

BN 20-11RZ | Schmersal | Công tắc từ | Schmersal Việt Nam

(0 đánh giá)

BN 20-11RZ

Schmersal Vietnam | Greentech Vietnam

12 tháng

BN 20-11RZ | Schmersal | Công tắc từ | Schmersal Việt Nam

Ordering details

Product type description BN 20-11RZ
Article number 101165310
EAN code 4030661208909
eCl@ss 27-27-01-04

Approval

Approval -

Global Properties

Product name BN 20
Standards -
Compliance with the Directives (Y/N)  Yes
suitable for elevators (Y/N) No
Active principle Magnetic drive
Materials
- Material of the housings Aluminium
- Material of the active surface Metal film
Housing construction form rectangular
Weight 298 g
Recommended actuator BP 10N, BP 10S, 2 x BP 10N, 2 x BP 10S, BP 15N, BP 15S, 2 x BP 15/2N, 2 x BP 15/2S, BP 34N, BP 34S, BP 20N, BP 20S, BP 31N, BP 31S, BP 11N, BP 11S, 2 x BP 11N, 2 x BP 11S, BP 12N, BP 12S, 2 x BP 12N, 2 x BP 12S, BP 21 N, BP 21S, 2 x BP 21N, 2 x BP 21S, BE 20N, BE 20S

Mechanical data

Design of electrical connection Screw connection
Mechanical life 1.000.000.000 operations
Electrical lifetime 1.000.000 … 1.000.000.000 operations
Switching frequency max. 300/s
Actuating planes Actuation from side
Active area lateral
Switch distance Sn 5 mm … 50 mm
BP 10N = 5 mm
BP 10S = 5 mm
2 x BP 10N = 10 mm
2 x BP 10S = 10 mm
BP 15N = 7 mm
BP 15S = 7 mm
2 x BP 15/2N = 15 mm
2 x BP 15/2S = 15 mm
BP 34N = 10 ... 25 mm
BP 34S = 10 ... 25 mm
BP 20N = 15 mm
BP 20S = 15 mm
BP 31N = 15 mm
BP 31S = 15 mm
BP 11N = 5 mm
BP 11S = 5 mm
2 x BP 11N = 15 mm
2 x BP 11S = 15 mm
BP 12N = 10 mm
BP 12S = 10 mm
2 x BP 12N = 5 ... 20 mm
2 x BP 12S = 5 ... 20 mm
BP 21 N = 10 ... 35 mm
BP 21 S = 10 ... 35 mm
2 x BP 21N = 15 ... 50 mm
2 x BP 21S = 15 ... 50 mm
BE 20N = 10 mm
BE 20S = 10 mm
- notice Actuating distance up to 50 mm depending on actuating magnet and version
Type of actuation Magnet
restistance to shock -
resistant to vibration 50 g, on sine wave oscillation
Bounce duration 0,3 ms … 0,6 ms
Latching (Y/N) No
bias magnet (Y/N) Yes
Actuating speed max. 18 m/s
Switching point accuracy ± 0,25 mm

Ambient conditions

Ambient temperature
- Min. environmental temperature −25 °C
- Max. environmental temperature +90 °C
Protection class IP67

Electrical data

Design of control element bistable contact, Opener (NC) / Normally open contact (NO)
Number of snap-in contacts 2
Switching time - Close 0,3 ms - 1.5 ms
Switching time - Open max. 0,5 ms
Voltage type VAC
Dielectric strength > 600 VAC (50 Hz)
Switching voltage max. 250 VAC
Switching current max. 3 A
Switching capacity max. 120 VA / W

Outputs

Design of control output Reed contakts

LED switching conditions display

LED switching conditions display (Y/N) No

ATEX

Explosion protection categories for gases None
Explosion protected category for dusts None

Dimensions

Dimensions of the sensor
- Width of sensor 104 mm
- Height of sensor 52 mm
- Length of sensor 47 mm

notice

The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets.
When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N).

Included in delivery

Actuators must be ordered separately.

Diagram



Note Diagram
  positive break NC contact
  active
  no active
  Normally-open contact
  Normally-closed contact

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 Wuppertal
The data and values have been checked throroughly. Technical modifications and errors excepted.
Generiert am 16.04.2017 - 08:49:28h Kasbase 3.2.6.F.64I
