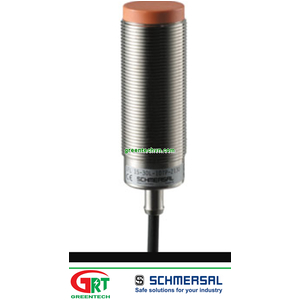

IFL 15-30L-10TP-2130 | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
IFL 15-30L-10TP-2130
Schmersal Vietnam | Greentech Vietnam
12 tháng
.
| Ordering details | |
| Product type description | IFL 15-30L-10TP-2130 - |
| Article number | 101127040 |
| EAN code | 4030661050836 |
| eCl@ss | 27-27-01-01 |
| Global Properties | |
| Product name | IFL - M30 |
| Standards | IEC/EN 60947-5-2; DIN VDE 0660-208 |
| Compliance with the Directives (Y/N)
| Yes |
| Operating resource protection class | None |
| Materials | |
| - Material of the housings | Brass |
| - Material of the cable mantle | Thermoflex 155 |
| - Material of the active surface | Plastic |
| - Material of the terminal fixing | thermoplastic |
| Housing coating | nickel-plated |
| Housing construction form | cylinder, thread |
| Weight | 240 g |
| Mechanical data | |
| Design of electrical connection | Cable |
| Cable length | 2 m |
| Conductor with strain relief | Yes |
| Conductors | 3 x 0,34 mm² |
| mechanical installation conditions | not flush |
| Switch distance | 15 mm |
| Reduction factor 1 met (Y/N) | No |
| Protection circuit | inductive interference protection, Protection against polarity reversal |
| Pressure resistant (Y/N) | No |
| Tightening torque for nuts | A/F 36 max. 3000 Ncm |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −25 °C |
| - Max. environmental temperature | +130 °C |
| Protection class | IP67 to IEC/EN 60529 |
| Electrical data | |
| Design of control element | Normally open contact (NO) |
| Number of wire | 3 piece |
| Voltage type | DC, direct current |
| Supply voltage UB | |
| - Min. supply voltage | 10 V |
| - Max. supply voltage | 30 V |
| Switch frequency | approx. 60 Hz |
| Voltage drop Ud | approx. 1.2 V (200 mA) |
| Operating current Ie | 200 mA |
| No-load current I0 | approx. 1.8 mA (24 V) |
| Outputs | |
| Design of control output | PNP |
| LED switching conditions display | |
| LED switching conditions display (Y/N) | No |
| - yellow LED | |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Length of sensor | 98 mm |
| - Diameter of sensor | M30 |
| notice | |
| Clamp H 30 is included in delivery | |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| Ordering suffix | |
| The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: IFL 15-30L-10TP-2130- 2130 - 2 | |
| ...- 2130 - 2 | version with nuts |
| ...-2130-1 | with silicon cable for humid environments |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 12.08.2017 - 18:14:33h Kasbase 3.2.7.F.64I | |
